Description
Important quality control
Technical parameters
| External LxWxH | 2100x480x(680-930)mm |
| Reverse trendelenburg | 0-25° |
| Trendelenburg | 0-25° |
| Lateral tilt left/right | 0-15° |
| Head plate up/down | 45°/0-90° |
| Back plate up/down | 70°/15° |
| Leg Plate up/Down | 45°/90° |
| Leg plate outwards | 0-90° |
| Kidney bridge elevation | 0-100mm |
| Horizontal sliding | 0-350mm |
| Safe working load | 150kg |
Technical configuration
| Bed frame | 1pc |
| Mattress | 1set |
| Anesthsia screen frame | 1pc |
| Shoulder holder | 2pcs |
| Arm holder | 2pcs |
| Leg support | 2pcs |
| Foot support | 2pcs |
| Hand controller | 1pc |
| Sliding block | 10pcs |
| Spanner | 4pcs |
PRODUCT HIGHLIGHTS
MATERIAL
The base material for the table is high thickness 304 stiainless steel, seamlessed welding by robot, with modern appearance and more stable.

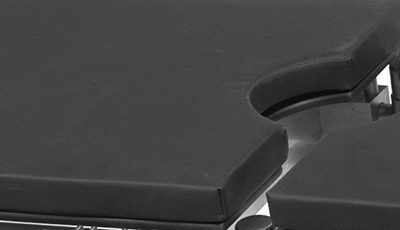

MATTRESS
Removable memory mattress, good rebound resilience, anti-static electricity and anti-microbial.

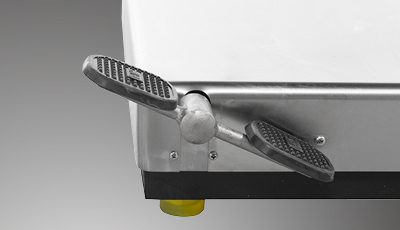

BRAKE
Pedal brake, easy to move and lock.

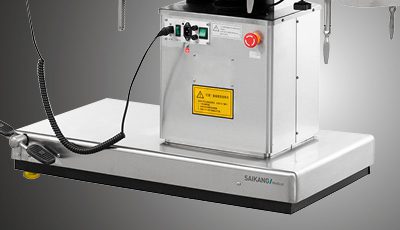

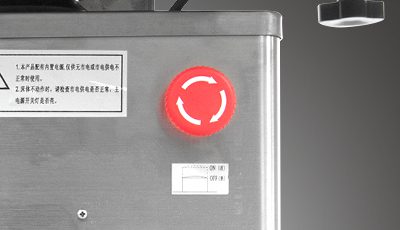

SAFETY
The table is provided with an emergency stop switch on the base column, help to stop the operating table running in case of emergency situation, emsure the safety of operation.

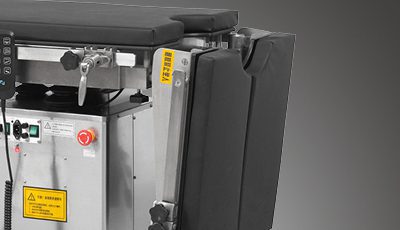

LEG PLATE
Leg plate with imported gas spring for easy control.

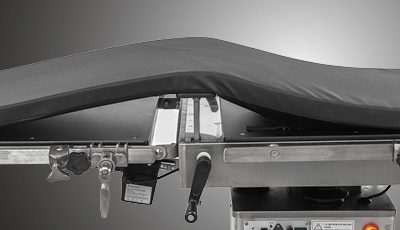

KIDNEY BRIDGE
Manual kidney bridge, more convenience.

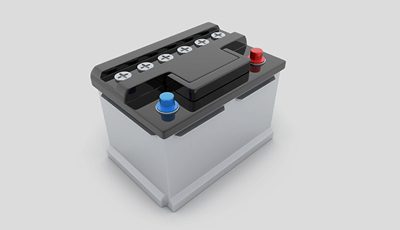

BATTERY
COULD SUPPORT Battery could support about 50-80 complete operation cycles. Working time could be last for one week according to useage and help to keep the operating table running in the event of power failure.

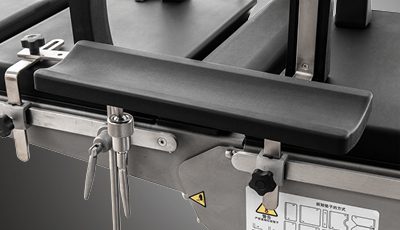

ARMREST

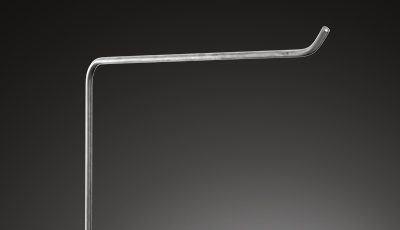

ANESTHESIA FRAME

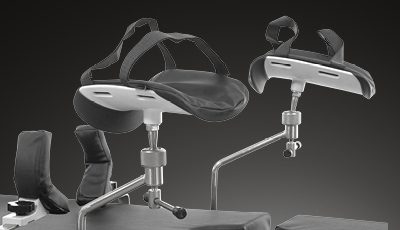

LEG CRUTCHES

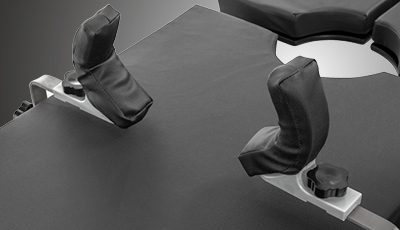

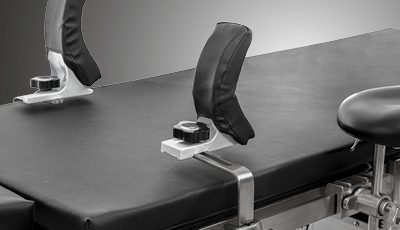

SHOULDER SUPPORT
