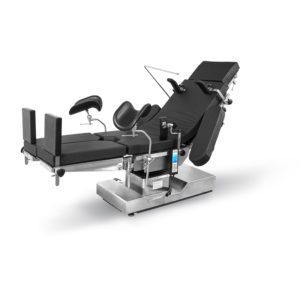

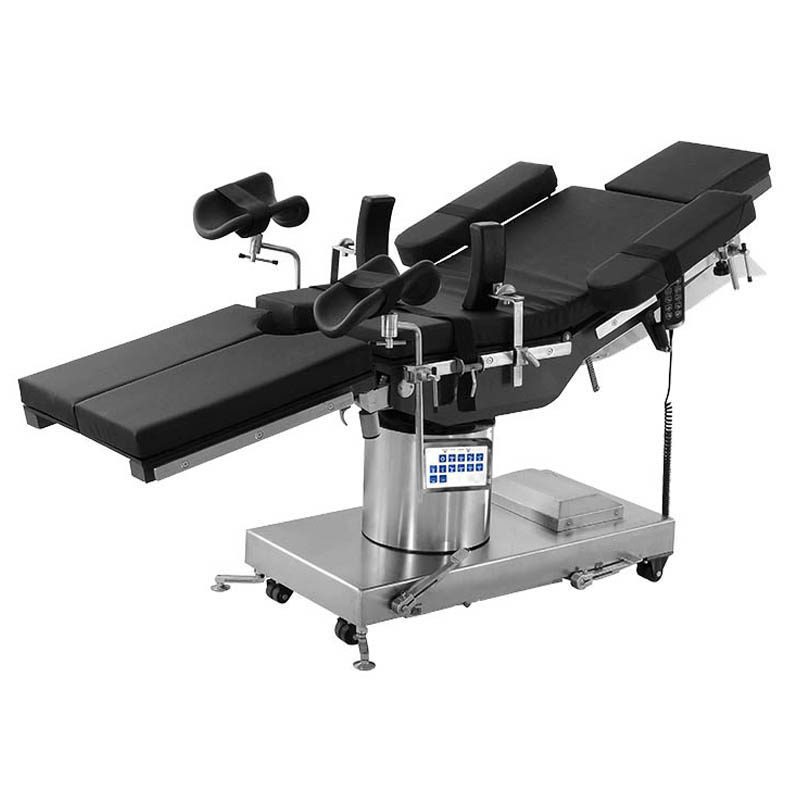

Description
Important quality control
Technical parameters
| External size (LxWxH) | 2100×520mm |
| Foot plate up/down | 0°-15°/0°-90° |
| Height adjustment (Via Electric-Hydraulic) | 600-1120 mm |
| Horizontal sliding | 0-400 mm |
| Back Plate Up/Down | 0°-75°/0°-20° |
| Leg plate down | 0-90° |
| Head Plate Up/Down | 45°/90° |
| Trendelenburg/Reverse Trendelenburg | 0°-25° |
| Lateral Tilt Left/Right | 0°-20°/0°-20° |
| Foot plate horizontal positioning | 0°-90° |
| Patient Weight Capacity | 250 kg |
Technical configuration
| Mattress | 1set |
| Arm support | 1pc |
| Anaesthesia screen | 1pc |
| Kidney Bridge | 1pc |
| Shoulder Support | 1pair |
| Hand Remote | 1pc |
| Foot support | 1pc |
| Fixing clamp | 7pcs |
| Power line | 1pc |
PRODUCT HIGHLIGHTS

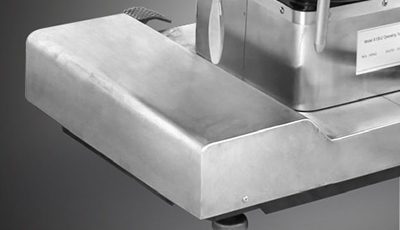

MATERIAL
The base, column and side hoder are all made of high quality 304 stainless steel, which is anti-corrosive and can be easily cleaned.

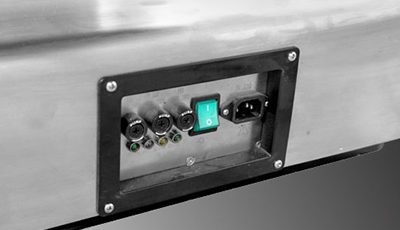

POWDER SUPPLY
Internal battery maintaining power supply for 50-80 operations and with low battery warning function.

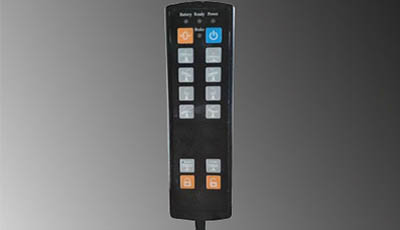

REMOTE PANEL
All function controlled by hand controller in the column, and can be locked.

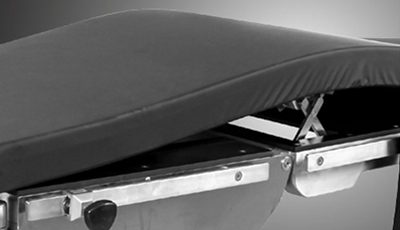

KIDNEY BRIDGE
Built-In Kidney Bridge, More Convenient And Nice Appearance.

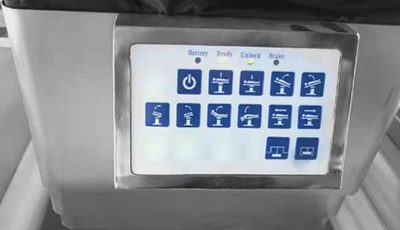

CONTROL PANEL
Built-in control panel in the column with battery.

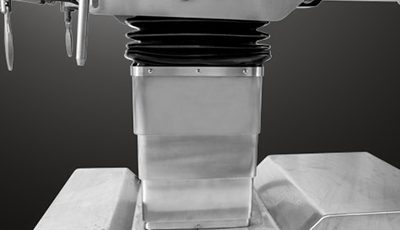

HYDRAULIC SYSTEM
Rand hydraulic system (German Hoerbiger) make table with low noise, high safety and reliability.

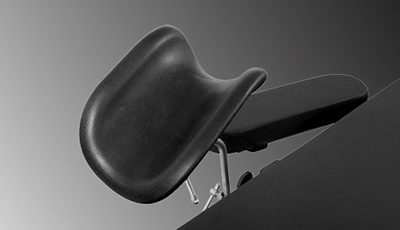

KNEE CURTCH

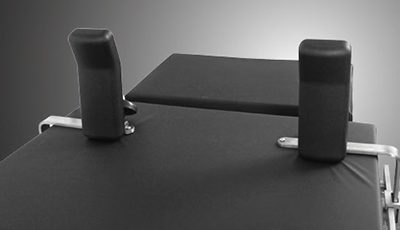

SHOULDER SUPPORT

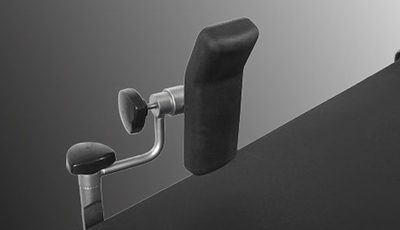

BODY SUPPORT

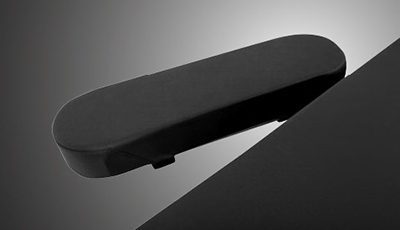

ARMREST

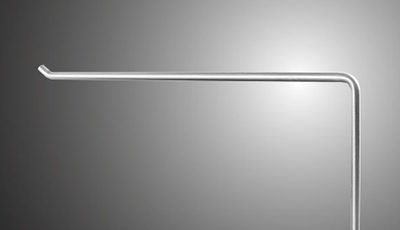

SCREEN
OPTIONAL ACCESSORIES

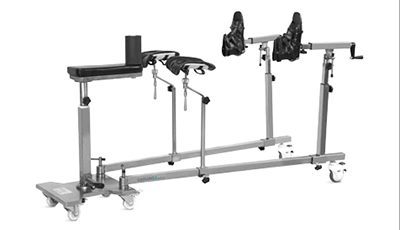

Orthopedic surgery.

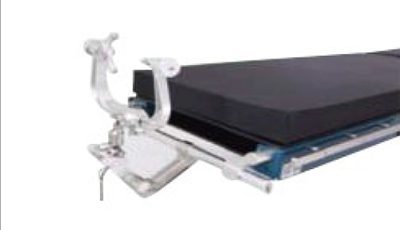

OPTIONAL ACCESSORIES
Neuro Surgey.
OPTIONAL ACCESSORIES
Gynecology surgery.
